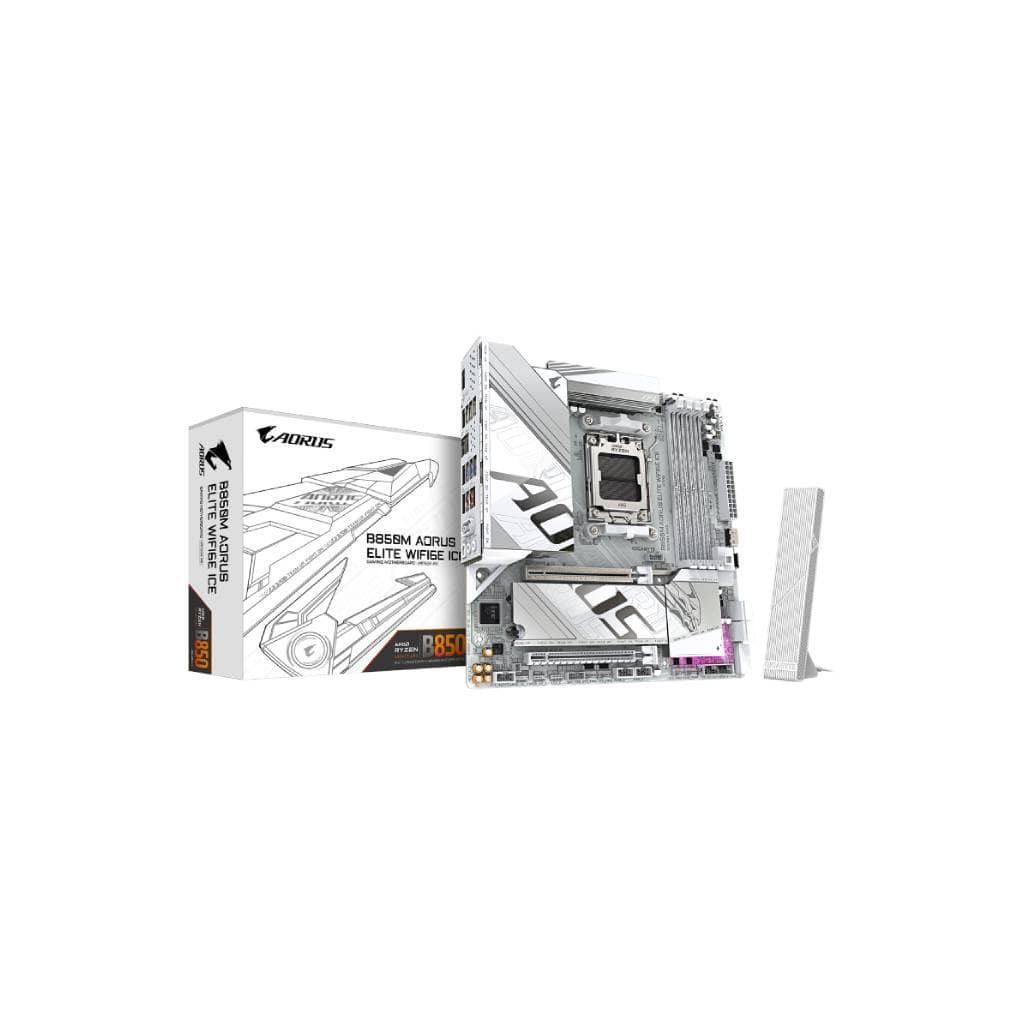

GIGABYTE B850M AORUS ELITE WIFI6E ICE (Rev. 1.1) AM5 DDR5 Micro ATX Motherboard
For orders placed before 12:00 on a business day; weekends excluded
เมนบอร์ด AMD AM5 รุ่น B850M AORUS ELITE WIFI6E ICE รองรับ DDR5 และ Wi-Fi 6E พร้อมระบบระบายความร้อน ICE สำหรับผู้ใช้งานที่ต้องการประสิทธิภาพสูงในขนาดเล็ก
Key features
- รองรับโปรเซสเซอร์ AMD Ryzen 7000/8000 Series รุ่น AM5
- รองรับหน่วยความจำ DDR5 สูงสุด 6000MHz (OC)
- รองรับ Wi-Fi 6E และ Bluetooth 5.4
- ระบบระบายความร้อน ICE สำหรับ VRM
- ช่องเสียบ PCIe 4.0 x16 สำหรับการ์ดจอ
Product description
เมนบอร์ด GIGABYTE B850M AORUS ELITE WIFI6E ICE รุ่น Rev. 1.1 ออกแบบมาเพื่อผู้ใช้งานระดับเริ่มต้นถึงกลางที่ต้องการประสิทธิภาพสูงในขนาด Micro ATX โดยรองรับชิปเซ็ต B850 พร้อมช่องเสียบ CPU รุ่น AM5 สำหรับโปรเซสเซอร์ AMD Ryzen 7000/8000 Series ที่ใช้หน่วยความจำ DDR5 ความเร็วสูงสุด 6000MHz (OC) พร้อมระบบระบายความร้อนแบบ ICE ที่ช่วยลดอุณหภูมิของ VRM ได้อย่างมีประสิทธิภาพ รองรับ Wi-Fi 6E ความเร็วสูงสุด 2402Mbps พร้อม Bluetooth 5.4 สำหรับการเชื่อมต่อไร้สายที่เสถียร พร้อมช่องเสียบ PCIe 4.0 x16 สำหรับการติดตั้งการ์ดจอระดับไฮเอนด์ และช่องเสียบ M.2 2280 สำหรับ SSD ความเร็วสูงสุด PCIe 4.0 x4 รองรับการใช้งานเกม งานกราฟิก และการตัดต่อวิดีโอได้อย่างลื่นไหล
More features
- ช่องเสียบ M.2 2280 2 ช่อง รองรับ PCIe 4.0 x4
- รองรับการ์ดจอสูงสุด 32GB VRAM
- ช่องเสียบ SATA III 6 ช่อง
- รองรับการติดตั้ง SSD แบบ M.2 และ HDD SATA
- รองรับการ์ดเสียง HD Audio แบบ 7.1 ช่อง
Pros and limitations
Pros
- รองรับ DDR5 ความเร็วสูงสุด 6000MHz (OC) สำหรับประสิทธิภาพการประมวลผลที่ดีขึ้น
- มี Wi-Fi 6E และ Bluetooth 5.4 สำหรับการเชื่อมต่อไร้สายที่เร็วและเสถียร
- ระบบระบายความร้อน ICE ช่วยลดอุณหภูมิ VRM ได้อย่างมีประสิทธิภาพ
- รองรับ PCIe 4.0 x16 และ M.2 2280 2 ช่อง สำหรับการ์ดจอและ SSD ความเร็วสูง
- มี LAN 2.5 GbE รองรับการเชื่อมต่ออินเทอร์เน็ตความเร็วสูง
Limitations
- ขนาด Micro ATX อาจจำกัดการขยายพอร์ตในเคสขนาดเล็ก
- ไม่มีช่องเสียบ PCIe 5.0 สำหรับการ์ดจอรุ่นใหม่ล่าสุด
Who it is for
เหมาะสำหรับผู้ใช้งานทั่วไป นักเล่นเกม และผู้ที่ต้องการระบบคอมพิวเตอร์ประสิทธิภาพสูงในขนาดเล็ก รองรับการอัปเกรด CPU และ RAM ได้ในอนาคต
Specifications (38)
- LAN
- 2.5 GbE
- TPM
- รองรับ
- BIOS
- AMI UEFI
- Wi-Fi
- Wi-Fi 6E
- Socket
- AM5
- น้ำหนัก
- 0.9 kg
- ชิปเซ็ต
- B850
- USB 2.0
- 2
- M.2 Type
- M.2 2280
- การรับประกัน
- 3 years
- Bluetooth
- 5.4
- M.2 Slots
- 2
- พอร์ต USB
- 10
- ขนาด
- 244 mm x 228 mm
- การเข้ารหัสเสียง
- Realtek ALC897
- Fan Headers
- 4
- รูปทรง
- Micro ATX
- ประเภทหน่วยความจำ
- DDR5
- Secure Boot
- รองรับ
- VRM Cooling
- ICE Cooling
- ช่องใส่หน่วยความจำ
- 4
- ความเร็วหน่วยความจำ
- DDR5 6000MHz (OC)
- เวอร์ชัน PCIe
- PCIe 4.0
- แหล่งจ่ายไฟ
- 8-pin ATX
- PCIe x1 Slots
- 1
- USB 3.2 Gen 1
- 6
- USB 3.2 Gen 2
- 2
- Audio Channels
- 7.1
- BIOS Flashback
- รองรับ
- PCIe x16 Slots
- 1
- RGB Connectors
- 2
- SATA III Ports
- 6
- CPU Fan Support
- 4-pin
- M.2 PCIe Support
- PCIe 4.0 x4
- Front Panel Audio
- รองรับ
- Chassis Fan Support
- 4-pin
- รองรับหน่วยความจำสูงสุด
- 128 GB
- USB 3.2 Gen 2 Type-C
- 1
Datasheets and manuals straight from the manufacturer — select a document to open or download it.
Frequently asked questions about this product
Compiled from manufacturer information
เมนบอร์ดนี้รองรับโปรเซสเซอร์ AMD Ryzen 7000 ได้ไหม?
ใช่ รองรับโปรเซสเซอร์ AMD Ryzen 7000 Series และ Ryzen 8000 Series ที่ใช้ซ็อกเก็ต AM5 โดยเฉพาะรุ่นที่รองรับ DDR5 และ PCIe 4.0
เมนบอร์ดนี้รองรับ DDR5 ความเร็วเท่าไหร่?
รองรับหน่วยความจำ DDR5 สูงสุด 6000MHz (OC) พร้อมช่องเสียบ 4 ช่อง รองรับความจุสูงสุด 128GB
เมนบอร์ดนี้มี Wi-Fi 6E หรือไม่?
ใช่ รองรับ Wi-Fi 6E ความเร็วสูงสุด 2402Mbps พร้อม Bluetooth 5.4 สำหรับการเชื่อมต่อไร้สายที่รวดเร็วและเสถียร
เมนบอร์ดนี้มีช่องเสียบ SSD M.2 กี่ช่อง?
มีช่องเสียบ M.2 2280 จำนวน 2 ช่อง รองรับ PCIe 4.0 x4 สำหรับ SSD ความเร็วสูงสุด
เมนบอร์ดนี้รองรับการ์ดจอรุ่นไหนได้บ้าง?
รองรับการ์ดจอที่ใช้ช่อง PCIe 4.0 x16 ได้ทุกรุ่น รวมถึงการ์ดจอระดับไฮเอนด์ที่มี VRAM สูงสุด 32GB
เมนบอร์ดนี้มีระบบระบายความร้อนแบบไหน?
มีระบบระบายความร้อน ICE สำหรับ VRM ช่วยลดอุณหภูมิของชิปควบคุมไฟฟ้า ทำให้ระบบทำงานได้อย่างมั่นคงแม้ในโหมด OC
เมนบอร์ดนี้รองรับ LAN ความเร็วเท่าไหร่?
รองรับ LAN ความเร็ว 2.5 GbE สำหรับการเชื่อมต่ออินเทอร์เน็ตความเร็วสูง รองรับการเล่นเกมออนไลน์และสตรีมมิ่งวิดีโอได้อย่างลื่นไหล
เมนบอร์ดนี้มีช่องเสียบ USB อะไรบ้าง?
มีช่องเสียบ USB ทั้งหมด 10 ช่อง ได้แก่ USB 3.2 Gen 2 Type-C 1 ช่อง, USB 3.2 Gen 2 2 ช่อง, USB 3.2 Gen 1 6 ช่อง และ USB 2.0 2 ช่อง
Is it in stock?
The GIGABYTE B850M AORUS ELITE WIFI6E ICE (Rev. 1.1) AM5 DDR5 Micro ATX Motherboard is in stock and ready to ship. Orders placed before 12:00 on a business day are delivered within 1–3 business days (Bangkok and vicinity) or 2–5 business days (other provinces). Order online at store.gist.co.th or contact our sales team at 092-251-4017.
How much does it cost?
The price is ฿7,430 (including 7% VAT). It is in stock and ready to ship. Business customers can request a quotation at sales@gist.co.th.
How long is the warranty?
Warranty period: 3 ปี (manufacturer's terms). To make a warranty claim, call 092-251-4017 or 065-523-5262, or email sales@gist.co.th (Mon–Fri 9:00–18:00), then send the product with your order number to our head office, or bring it to the head office in person.
How long does delivery take?
Orders placed before 12:00 on a business day are delivered within 1–3 business days (Bangkok and vicinity) or 2–5 business days (other provinces). Free delivery on orders of ฿5,000 or more (a ฿150 delivery fee applies below this amount).
Is it genuine?
Genuine products sourced from distributors in Thailand, covered by the manufacturer's warranty. Full tax invoices are available.
