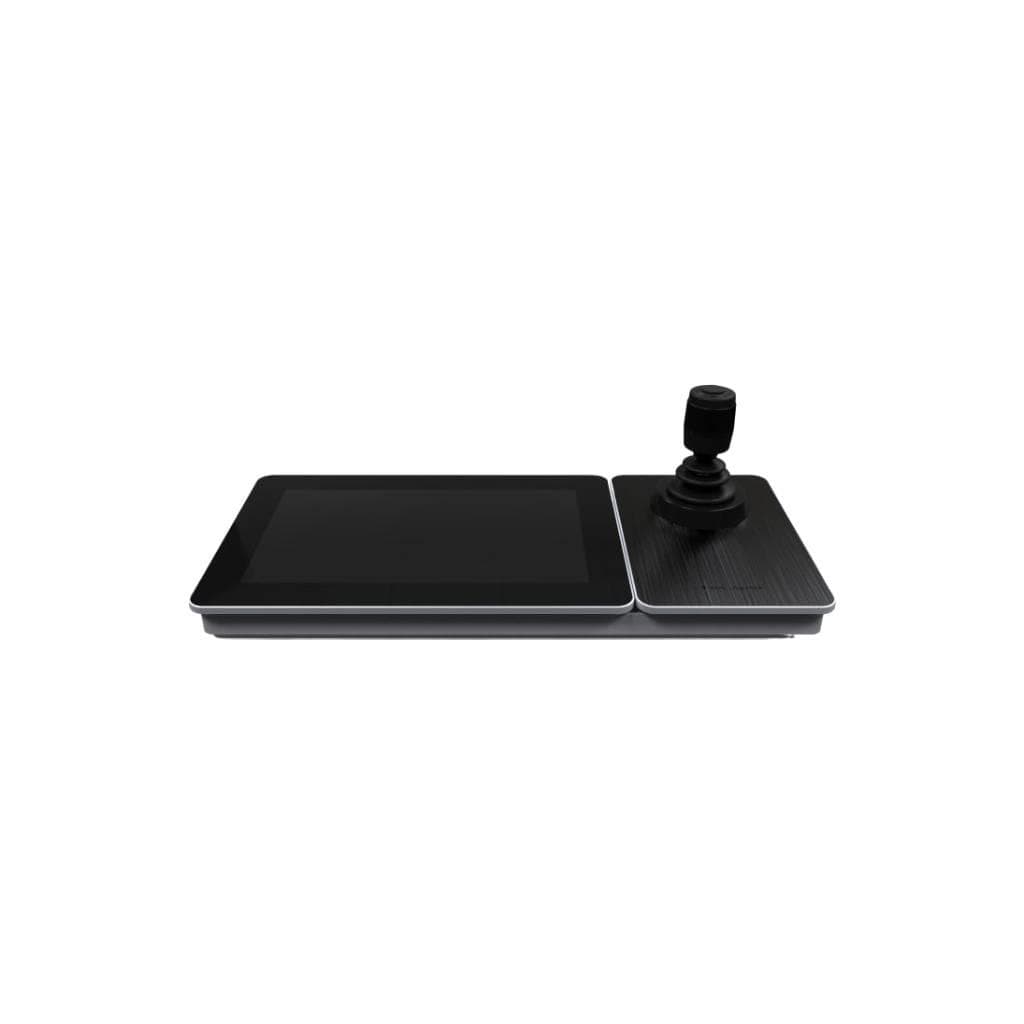

Hikvision DS-1600KI(B) Network Keyboard 10.1" Touchscreen 1280x800 Android
SKU: DS-1600KI(B)#DEMONetworking › IP Cameras (CCTV)
฿33,882
Price includes 7% VATPrice updated October 19, 2026
Out of stockManufacturer's warranty
Temporarily out of stock — ask us about the restock date or an alternative model
Call us 092-251-4017Send a question to salesGenuineFree delivery from ฿5,000Tax invoice
Network CCTV keyboard controller with 10.1-inch touchscreen, Android operating system, supports multiple camera models, enabling immediate real-time control and viewing
Key features
- 10.1-inch touchscreen, 1280x800 resolution
- Built-in Android operating system, easy to use
- Supports video decoding up to 4K@30fps or 4x1080P@30fps
- Connects to network via Ethernet or WiFi
- Has 4-axis joystick, precise camera control
Product description
The Hikvision DS-1600KI(B) control keyboard is designed for full-featured CCTV system control, featuring a 10.1-inch touchscreen with 1280 × 800 pixel resolution for sharp display. Built-in Android operating system enables efficient control of cameras, real-time video viewing, and management of NVR/DVR. Supports up to 1 channel 4K@30fps or 4 channels 1080P@30fps video decoding. Equipped with HDMI and DVI ports for external monitor connection. Operates on PoE or 12 VDC power and withstands operating temperatures up to 55°C, making it ideal for installation in hot central control rooms
More features
- Supports multiple camera models, including NVR/DVR
- Low power consumption, not exceeding 15 watts
- Easy installation, compact size, lightweight at only 1.7 kg
Pros and limitations
Pros
- Large 10.1-inch touchscreen with sharp 1280x800 display
- Built-in Android operating system, easy to use, supports updates
- Supports simultaneous decoding of multiple channels of 4K and 1080P video
- Supports Ethernet, WiFi, and PoE connectivity for flexible installation
- Features a 4-axis joystick for precise and fast camera control
Limitations
- No built-in speaker; external speaker required
- No USB-C port for connecting new devices
Who it is for
Ideal for central control rooms, offices, or security management centers requiring real-time CCTV camera control with multi-point video viewing
Specifications (25)
- Panel
- TFT LCD
- Usage
- Used for controlling CCTV cameras in central control rooms
- Weight
- 1.7 kg
- Control
- 4-axis joystick
- Mounting
- Can be mounted on desk or wall
- Resolution
- 1280 × 800
- Connectivity
- Ethernet 10/100/1000M, WiFi
- Display size
- 10.1 inches
- Port (Ports)
- 1 × HDMI, 1 × DVI, 2 × USB 2.0, 1 × Ethernet 10/100/1000M, WiFi
- Power supply
- 12 VDC / PoE
- System setup
- Supports network-based configuration
- Media support
- Supports real-time video viewing
- Camera support
- Supports multiple camera models, NVR, DVR
- Video decoding
- H.264, H.264+, H.265, H.265+, MPEG4
- Operating system
- Android
- Standard support
- CE-EMC, CE-LVD, ROHS, CB, UL, FCC-SDoC, RCM, BIS
- Power consumption
- ≤15 W
- Size (Dimensions)
- 404 mm × 163 mm × 180 mm
- Audio connectivity
- 1 channel 3.5 mm (Input), 1 channel 3.5 mm (Output)
- Network management
- Supports network-based configuration
- Operating humidity
- 10% to 90%
- Operating temperature
- -10 to +55 °C
- Operating system support
- Android
- Supports firmware updates
- Recommended to update to the latest firmware
- Video decoding capability
- 1 channel 4K@30fps or 4 channels 1080P@30fps
Datasheets and manuals straight from the manufacturer — select a document to open or download it.
10 questions
Frequently asked questions about this product
Compiled from manufacturer information
Can this keyboard work with all Hikvision camera models?
Yes, the DS-1600KI(B) keyboard supports multiple Hikvision CCTV models, including IP cameras, NVRs, and DVRs that support standard protocols such as ONVIF or Hik-Connect
How many 4K cameras can be viewed simultaneously?
The keyboard supports decoding up to 1 channel 4K or 4 channels 1080P@30fps simultaneously, depending on system configuration and available bandwidth
Can it connect via WiFi?
Yes, this keyboard supports network connection via WiFi and Ethernet 10/100/1000M, enabling remote configuration and control
How much power does it consume?
Maximum power consumption does not exceed 15 watts. Supports PoE or 12 VDC power supply, saving energy and simplifying installation
Can it be wall-mounted?
Yes, this keyboard is compact and lightweight at only 1.7 kg, and can be mounted on a desk or wall using a stand or accessories
Is it in stock?
The Hikvision DS-1600KI(B) Network Keyboard 10.1" Touchscreen 1280x800 Android is temporarily out of stock. Ask us about the restock date or an alternative model at sales@gist.co.th or 092-251-4017.
How much does it cost?
The price is ฿33,882 (including 7% VAT). It is currently out of stock; ask us about the restock date at sales@gist.co.th. Business customers can request a quotation at sales@gist.co.th.
How long is the warranty?
The warranty follows the manufacturer's terms for each model; ask our sales team for the warranty period of this model. To make a warranty claim, call 092-251-4017 or 065-523-5262, or email sales@gist.co.th (Mon–Fri 9:00–18:00), then send the product with your order number to our head office, or bring it to the head office in person.
How long does delivery take?
Orders placed before 12:00 on a business day are delivered within 1–3 business days (Bangkok and vicinity) or 2–5 business days (other provinces). Free delivery on orders of ฿5,000 or more (a ฿150 delivery fee applies below this amount).
Is it genuine?
Genuine products sourced from distributors in Thailand, covered by the manufacturer's warranty. Full tax invoices are available.
